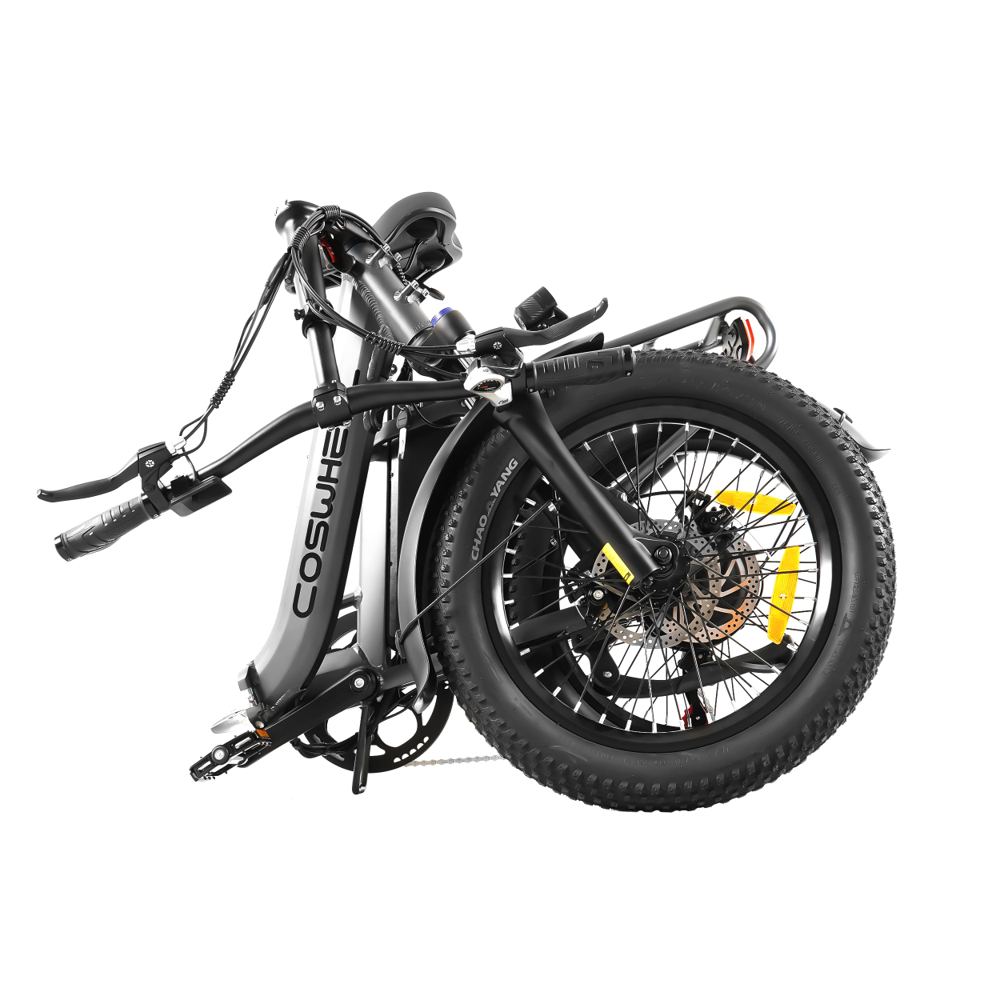

Coswheel Y20L
Folding step-thru e-bike
$1,399our price
A folding, step-through e-bike with a torque sensor, 20" off-road tires and a front fork you can lock out. Easy to get on, easy to store.
Includes basket, bottle cage, bag, fender & phone holder
We confirm everythingStock, delivery time and the final price, by WhatsApp or phone.
Pick up or shipPick up at our Midtown Miami shop, or ask about shipping.
Features
What you get
Motor750W rated · 1200W peak
Battery48V 15Ah · 720Wh
Top speed28 mph (mfr. rated)
RangeUp to 52 mi pedal assist · 30+ mi throttle
Torque sensorSmoother, more natural assist · 3 levels
FoldableFolds for a car trunk or apartment
Front suspension20" fork · 80 mm travel · lockable
Disc brakes160 mm stainless rotors
Tires20 × 3.0 off-road tires
DrivetrainShimano 7-speed
Frame6061-T6 aluminum alloy
LightsLED headlight 120 lux + rear light
DisplayEasy-read LCD
ChargingAbout 7.5 h (54.6V 2A)
Weight≥ 79 lb with battery
Max load330 lb (safe load 265 lb)
Rider height5′1″ – 6′5″
IncludedBasket, bottle cage, bag, fender, phone holder
Specifications
Full specs
Performance
- Top Speed
- Class 2/3, 28 Mph (45Km/h)
- Range
- 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52miles (84km) in Class-1 PAS (pedal assist)
- Motor
- 48V Peak 1200W(Rated 750W) Brushless Rear Hub Motor 50N.m
- Battery
- 48V 15Ah Battery (Lithium 18650 Cells)
- Energy
- 720Wh
- Front Suspension
- 20" Shoulder Shock Absorbing, 80mm Travel, Lockable
- Brakes
- Disc Brakes, Equipped with 160mm Stainless Brake Disc
- Tires
- Chaoyang Off Road Tire 20" × 3.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle
- Grip Twist Throttle
Electronics
- Charger
- 54.6V2A Charger
- Charging Time
- 7.5 Hours
- Display
- Easy Read LCD Display
- Controller
- 48V 25A
- Front Light
- LED, 120 LUX
- Rear Light
- LED
- Pedal Assist
- 3 Levels
- Sensors
- Torque Sensor
Components
- Frame
- Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal
- Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank
- 148T 170mm 7-speed ED Tooth Plate
- Rear Derailleur
- Shimano 7-Speed
- Chain
- 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars
- Aluminum Alloy
Geometry
- Suitable Height
- 5'1" - 6'5"
- Seat Height
- 32.3"-39.7"(82-101cm)
- Handlebar Height
- 41.7"-45.7" (106-116cm)
- Bike Weight
- ≥79lbs (with Battery) (≥36kg)
- Maximum Load
- 330lbs (150kg)
- Safe Load
- 265lbs (120kg)
- Overall Size
- 66.2" * 26.4" *41.7" (168*67*106cm)
- Package Size
- 37.4" * 17.3" * 29.9" (95*44*76cm)
Specifications are the manufacturer’s published figures and may change.
