Home / Electric & dirt / Coswheel Y16
1 / 8E-bike

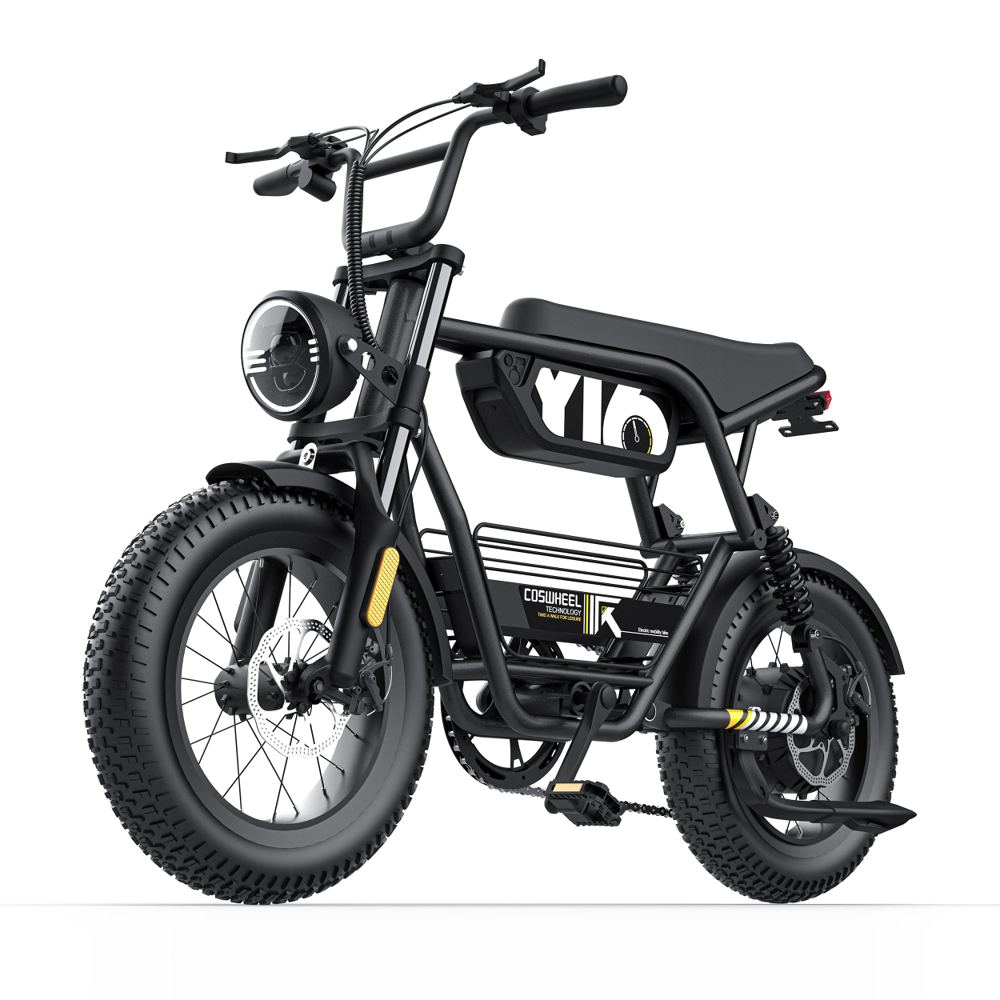

Coswheel Y16
Dual-suspension compact e-bike
$1,599our price
Retro-styled compact e-bike with 16 × 4.0 fat tires, front and rear suspension and an angel-eye headlight. Built for shorter riders.
Fits riders 4′11″–5′11″ · seat height 29.5"
We confirm everythingStock, delivery time and the final price, by WhatsApp or phone.
Pick up or shipPick up at our Midtown Miami shop, or ask about shipping.
Features
What you get
Motor750W rated · 1000W peak
Battery48V 15Ah · 720Wh
Top speed28 mph (mfr. rated)
RangeUp to 52 mi pedal assist · 30+ mi throttle
Dual suspensionDouble-crown fork 80 mm + rear shocks
Dual disc brakes160 mm stainless rotors
Fat tires16 × 4.0 all-terrain
ThrottleTwist-grip throttle
LightsAngel-eye headlight 120 lux + LED rear
DisplayEasy-read LCD
Charging3.5 – 8 h (48V 3A)
DrivetrainSingle speed · 1-level pedal assist
FrameIron frame
Weight≥ 97 lb with battery
Max load330 lb (safe load 265 lb)
Rider height4′11″ – 5′11″
Specifications
Full specs
Performance
- Top Speed
- Class 2/3, 28 Mph (45Km/h)
- Range
- 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52+miles (84km) in Class-1 PAS (pedal assist)
- Motor
- 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m
- Battery
- 48V 15Ah Battery (Lithium 18650 Cells)
- Energy
- 720Wh
- Front Suspension
- Double-Crown Front Fork, Total Length 630mm, Gap 135mm, 80mm Travel
- Rear Suspension
- Dual Shock Absorbers, Hole Spacing 185mm, Poundage Wire Diameter 5mm
- Brakes
- Double Disc Brakes, Equipped with 160mm Stainless Brake Disc
- Tires
- ChaoYang All Terrain Tire 16" × 4.0" H5176 30TPI
- Throttle
- Grip Twist Throttle
Electronics
- Charger
- 48V3A Charger
- Charging Time
- 3.5-8.0 Hours
- Display
- Easy Read LCD Display
- Controller
- 48V 22A
- Front Light
- Classic Angel Eye Headlight, 120 LUX
- Rear Light
- LED
- Pedal Assist
- Single Levels
- Sensors
- Speed Sensor
Components
- Frame
- Iron Frame
- Pedal
- Black
- Crank
- 46T Double Cover*Ffish Shape
- Rear Derailleur
- Single Speed
- Chain
- Anti-rust, 116 Mesh
- Handlebars
- Black, 25.4*L:640mm*H:180mm, 17°
Geometry
- Suitable Height
- 4'11" - 5'11" (4.9ft-5.9ft)
- Seat Height
- 29.53" (75cm)
- Bike Height
- 39.37" (100cm)
- Wheelbase
- 38.58" (98cm)
- Handlebar Width
- 25.59" (65cm)
- Bike Weight
- ≥97lbs (with Battery) (≥44kg)
- Maximum Load
- 330lbs (150kg)
- Safe Load
- 265lbs (120kg)
- Overall Size
- 60.24" * 25.59" *39.37" (153*65*100cm)
- Package Size
- 55.91" * 12.60" * 32.28" (142*32*82cm)
Specifications are the manufacturer’s published figures and may change.
